CPSC 330 Lecture 9: Classification Metrics

Varada Kolhatkar

Focus on the breath!

Announcements

• Important information about midterm 1
  • https://edstem.org/us/courses/104703/discussion/8335467
  • Good news for you: You’ll have access to our course notes and sklearn, pandas, and numpy documentation in the midterm!
• HW3 was due on Monday, Oct 5th 11:59 pm.
• HW4 will be due next week.

Today’s big questions

1. When can accuracy mislead us, and what does a confusion matrix reveal?
2. How do we choose between precision, recall, and F1 based on the cost of errors?
3. How do thresholds and ranking metrics help us choose a decision rule, and how do we evaluate it independently?

A fraud classification example

• Each row is a transaction; 1 = fraud (positive), 0 = non-fraud.
• A positive prediction flags a transaction for investigation.
• Reserve the test set; use stratified splits to preserve class proportions.

	Amount	V1	V2	Class
161019	33.35	1.995966	-0.247681	0
179531	10.00	2.049079	-0.189257	0
229408	18.63	2.030060	0.454393	0
44337	1.98	-1.724699	2.120453	0
143423	150.00	-1.361361	-0.955378	0

Stratification preserves proportions; it does not balance the classes. Random splits keep this demo focused on metrics. Future-transaction deployment would require an evaluation that accounts for time.

Problem: Class imbalance

\[ \text{Accuracy} = \frac{\text{correct classifications}}{\text{total classifications}} \]

	Count	Percentage
Class
0	139313	99.827
1	241	0.173

• Fraud is rare: fewer than 2 transactions in every 1,000.
• Predicting non-fraud every time can achieve over 99% accuracy.

DummyClassifier

Predict the accuracy and number of fraud cases caught before revealing the result.

dummy = DummyClassifier(strategy="most_frequent")
dummy.fit(X_train, y_train)
print(f"Validation accuracy: {accuracy_score(y_valid, dummy.predict(X_valid)):.3%}")

Validation accuracy: 99.828%

Should the bank deploy this model?

It catches no fraud. High accuracy reflects the large non-fraud class.

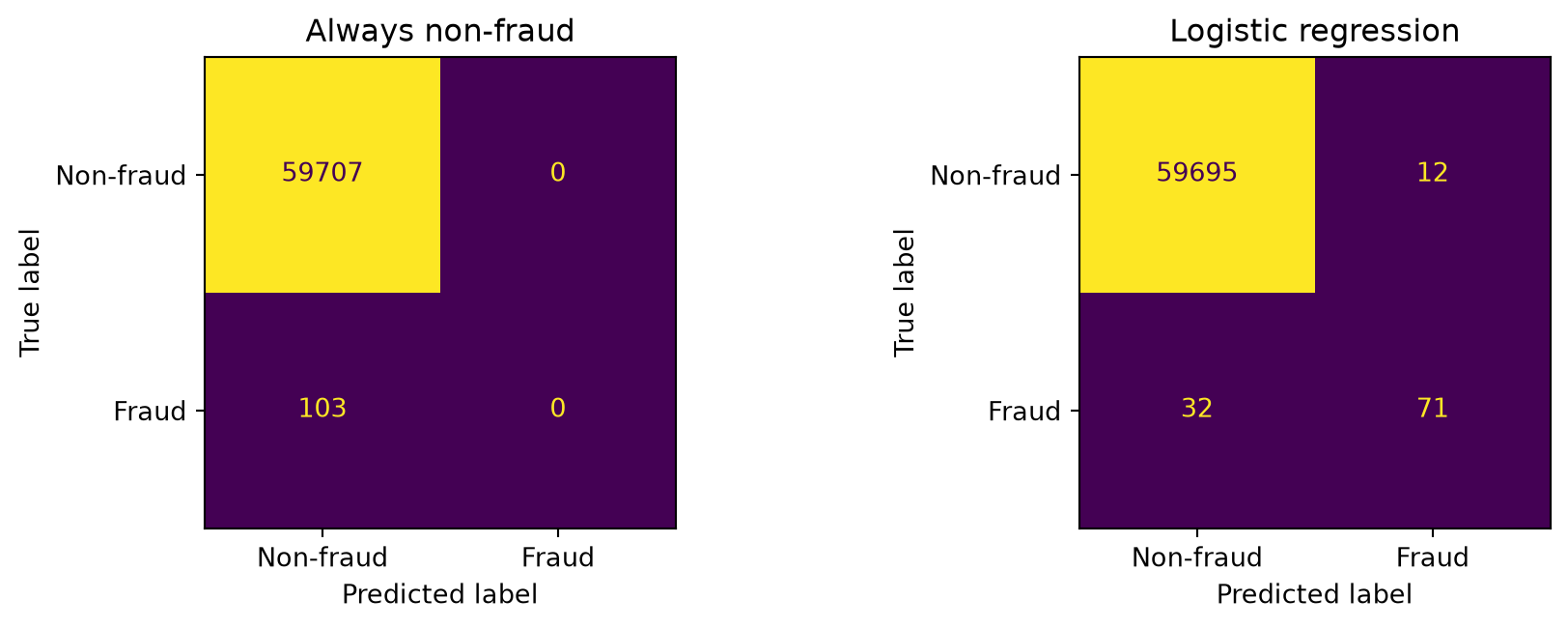

Comparing models on the same validation set

Which model catches more fraud? What new mistakes does it make?

Use the same examples for both models. Rows are actual classes; columns are predicted classes. Logistic regression catches fraud but also flags some legitimate transactions.

Understanding the confusion matrix

• ✅ True negatives (TN):
  Actual Non-fraud, predicted Non-fraud
• ✅ True positives (TP):
  Actual Fraud, predicted fraud
• ❌ False positives (FP):
  Actual Non-fraud, predicted Fraud

• ❌ False negatives (FN):
  Actual Fraud, predicted Non-fraud

Confusion matrix questions

Imagine a spam filter model where emails labeled
1 = spam, 0 = not spam.

If a spam email is incorrectly classified as not spam, what kind of error is this?

• 1. A false positive
• 2. A true positive
• 3. A false negative
• 4. A true negative

Answer: C (false negative).

Precision and recall

• Precision: Of the transactions flagged, what fraction were fraud?
• Recall: Of the actual fraud cases, what fraction did we catch?

\[ \text{Precision}=\frac{TP}{TP+FP}, \qquad \text{Recall}=\frac{TP}{TP+FN} \]

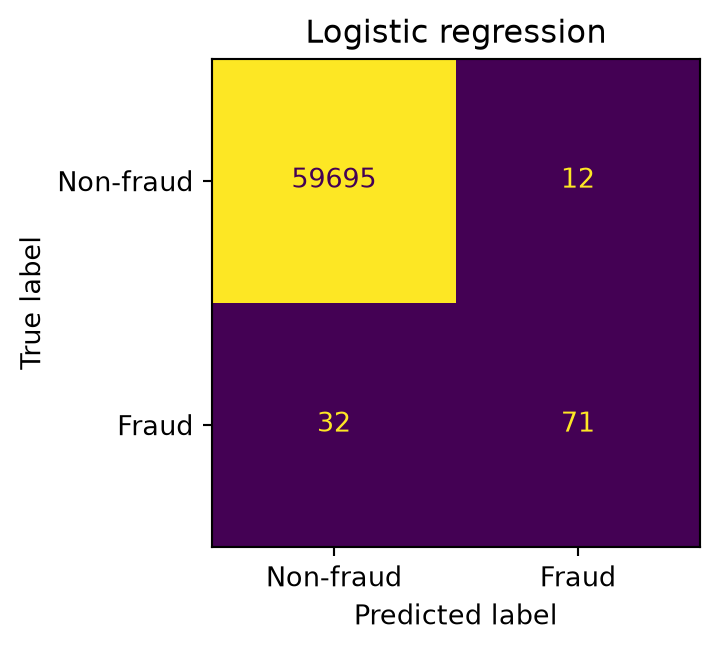

Precision and recall on our validation set

	Metric	Calculation	Value
0	Precision	71 / (71 + 12)	0.855
1	Recall	71 / (71 + 32)	0.689

High precision means a small fraction of alerts are false alarms. High recall means a small fraction of actual positives are missed.

Your turn: calculate the metrics

A toy fraud detector has TP=6, FP=4, FN=2, TN=88.

• What are its precision and recall?

Precision = 6/10 = 0.60. Recall = 6/8 = 0.75. Alerts = TP+FP; actual positives = TP+FN.

Trade-off between precision and recall

• Increasing recall often decreases precision, and vice versa.

• Example:
  • Predict “fraud” for every transaction \(\rightarrow\) perfect recall, terrible precision.

  • Predict “fraud” only when the predicted probability of fraud is \(> 0.95\) \(\rightarrow\) typically high precision, low recall.

The right balance depends on the application and cost of errors.

F1-score

• Sometimes, we want a single metric that balances precision and recall.

• The F1-score is the harmonic mean of the two:

\[ F1 = 2 \times \frac{\text{Precision} \times \text{Recall}}{\text{Precision} + \text{Recall}} = \frac{2TP}{2TP + FP + FN} \]

• High F1 means both precision and recall are strong.

• F1 ignores TN and does not encode financial costs or review capacity.

For the toy fraud detector: \(F1 = 12/(12+4+2) \approx 0.67\).

Summary

Metric	What it measures	High value means
Accuracy	Overall correctness	Model gets most predictions right
Precision	Quality of positive predictions	Small fraction of alerts are false alarms
Recall	Quantity of true positives caught	Small fraction of positives are missed
F1-score	Balance of precision & recall	Both precision and recall are high

iClicker Exercise 9.1

Select all of the following statements which are TRUE.

• 1. In screening where a missed disease delays urgent treatment and a false alarm triggers a low-risk follow-up, prioritize precision over recall.
• 2. If a spam filter deletes flagged mail, losing a crucial legitimate email can be more costly than letting a spam email reach the inbox (positive = spam).
• 3. If method A gets a higher accuracy than method B, that means its precision is also higher.
• 4. If method A gets a higher accuracy than method B, that means its recall is also higher.

Answer: B. A reverses the stated priority; C and D do not follow from accuracy.

Both models see the same 95 negative and 5 positive examples.

Model	Actual class	Predicted negative	Predicted positive
A	Negative	90 (TN)	5 (FP)
A	Positive	5 (FN)	0 (TP)
B	Negative	80 (TN)	15 (FP)
B	Positive	0 (FN)	5 (TP)

Model	Accuracy	Precision	Recall
A	0.90	0	0
B	0.85	0.25	1

Higher accuracy does not guarantee higher precision or recall.

Counterexamples

Both models see the same 95 negative and 5 positive examples.

Model	Actual class	Predicted negative	Predicted positive
A	Negative	90 (TN)	5 (FP)
A	Positive	5 (FN)	0 (TP)
B	Negative	80 (TN)	15 (FP)
B	Positive	0 (FN)	5 (TP)

Model	Accuracy	Precision	Recall
A	0.90	0	0
B	0.85	0.25	1

Higher accuracy does not guarantee higher precision or recall.

From probabilities to predictions

• predict(X) returns a class label: fraud or non-fraud.
• predict_proba(X) returns estimated probabilities for each class.
• We can choose a threshold: predict fraud when its estimated probability exceeds that value.
• Changing the threshold changes the predictions without retraining the model.

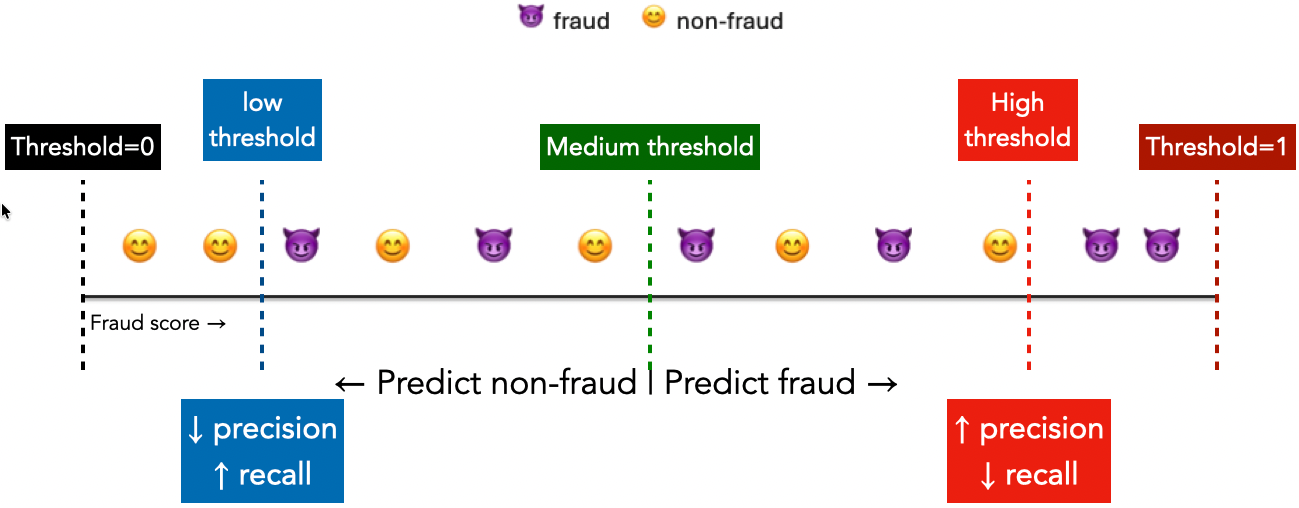

Predicting with logistic regression

Move from the medium to the low threshold. Which transactions become TP or FP?

Precision arrows show a tendency, not a guarantee. Scores stay fixed.

Predict fraud for scores at least the threshold. Moving from medium to low adds two fraud cases and two non-fraud cases. Recall increases. Precision depends on the mix added. Threshold changes do not refit the model or improve its ranking.

Same model, different thresholds

	Threshold	Caught (TP)	Missed (FN)	False alarms (FP)	Precision	Recall	F1
0	0.50	71	32	12	0.855	0.689	0.763
1	0.10	82	21	26	0.759	0.796	0.777
2	0.01	88	15	113	0.438	0.854	0.579

Lowering the threshold cannot decrease recall on fixed data. Precision can increase or decrease.

Your turn: can both metrics improve?

Start with TP=6, FP=4, FN=2, TN=88. Lowering the threshold flags three more transactions: two fraud, one legitimate.

1. Calculate the new precision and recall.
2. Does this contradict the usual trade-off?

New counts: TP=8, FP=5, FN=0, TN=87. Precision rises from 0.60 to 8/13 ≈ 0.615; recall rises from 0.75 to 1. Precision need not decrease when the threshold falls.

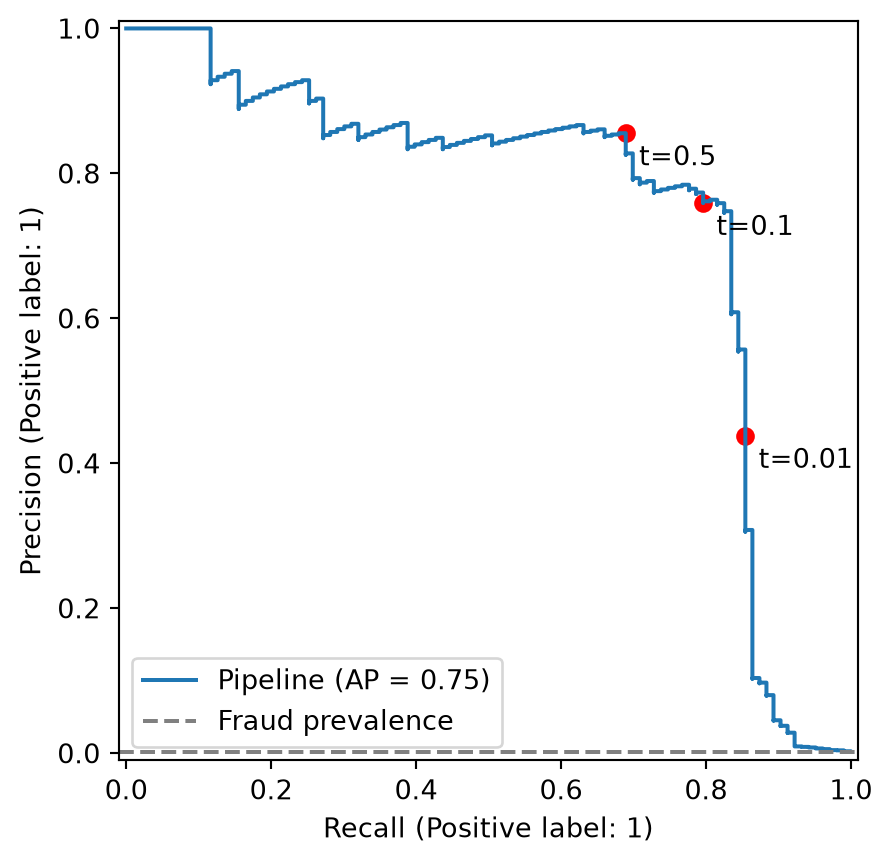

PR curve

• Horizontal axis: recall; vertical axis: precision.
• Lower thresholds move toward greater recall; precision can move either way.
• Desirable region: top right.

Predicting everything positive gives recall 1 and precision equal to prevalence. Prevalence is also a reference for an uninformative ranking. The no-positive endpoint has undefined precision, conventionally displayed as 1.

Your turn: choose an operating point

The bank needs recall of at least 0.8 and wants the most reliable alerts.

	Threshold	Caught (TP)	Missed (FN)	False alarms (FP)	Precision	Recall	F1
0	0.50	71	32	12	0.855	0.689	0.763
1	0.10	82	21	26	0.759	0.796	0.777
2	0.01	88	15	113	0.438	0.854	0.579

Which of these thresholds qualifies? Which qualifying threshold has highest precision?

Use the displayed validation results. This compares only the three shown thresholds, not every possible threshold. A review-capacity constraint could change the choice.

Average Precision (AP) score example

Rank	Predicted P(fraud)	Actual label	Precision so far	Recall so far
1	0.95	Positive	1/1 = 1.00	1/3
2	0.85	Negative	1/2 = 0.50	1/3
3	0.80	Positive	2/3 = 0.67	2/3
4	0.65	Positive	3/4 = 0.75	3/3
5	0.40	Negative	3/5 = 0.60	3/3
6	0.20	Negative	3/6 = 0.50	3/3

Key observation: Recall increases only when we encounter another positive example. AP summarizes precision at the points where recall increases.

AP weights precision by each increase in recall. Retrieving positives earlier, with fewer negatives ahead of them, gives higher AP. It measures ranking quality, not probability accuracy.

average_precision_score(y_valid, valid_scores)

0.747350326308888

iClicker Exercise 9.2

Choose the appropriate evaluation metric:

Scenario 1: Balance precision and recall at one threshold.

Scenario 2: Summarize retrieval of positives across thresholds.

• 1. F1 for 1, AP for 2
• 2. AP for 1, F1 for 2
• 3. AP for both
• 4. F1 for both

Answer: A. AP uses scores, including decision_function outputs; it does not require predict_proba.

F1 Score	Average Precision (AP)
Evaluates binary predictions at one chosen threshold.	Evaluates prediction scores across thresholds.
Balances precision and recall at that threshold.	Rewards ranking actual positives ahead of negatives.
Changes when the classification threshold changes.	Does not require choosing a single threshold.
Uses predicted class labels.	Uses prediction scores (e.g., probabilities or decision scores).

PR vs ROC

• Both curves use recall (TPR): the fraction of actual fraud caught.
• PR pairs recall with precision: the fraction of flagged transactions that are fraud.
• ROC pairs recall with FPR: the fraction of legitimate transactions incorrectly flagged.

\[ \text{TPR}=\text{Recall}=\frac{TP}{TP+FN}, \qquad \text{FPR}=\frac{FP}{FP+TN} \]

ROC plots TPR versus FPR as the threshold varies; the desirable region is top left.

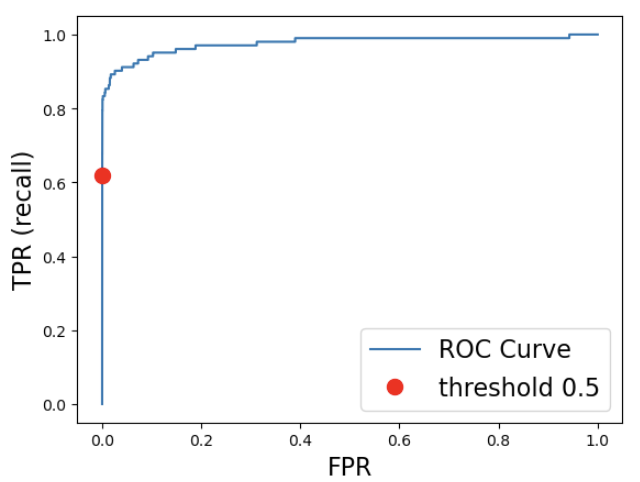

ROC Curve example

• Bottom-left \(\rightarrow\) very high threshold (almost everything predicted negative: low recall, low FPR).

• Top-right \(\rightarrow\) very low threshold (almost everything predicted positive: high recall, high FPR).


ROC AUC

The area under the ROC curve (AUC) represents the probability that the model, if given a randomly chosen positive and negative example, will rank the positive higher than the negative (ties count as half).

For example, AUC-ROC = 0.90 means: If we randomly pick one fraudulent transaction and one legitimate transaction, there’s a 90% chance the model assigns a higher fraud score to the fraudulent transaction, with ties counted as half.

Why a small FPR can still mean many false alarms

Suppose 100 of 100,000 transactions are fraud.

At 80% recall and 1% FPR:

• Fraud caught: 80.
• Legitimate transactions flagged: 999.
• Precision: \(80/(80+999) \approx 7.4\%\).

PR shows alert reliability; ROC shows the fraction of negatives affected. Both are useful with imbalanced data. Inspect the operating region and counts.

Exercise 9.4: which model?

The review team wants to catch at least 80% of positive cases (recall ≥ 0.8) while keeping false alarms as low as possible (maximizing precision).

Model	AP	Best validation precision meeting the requirement
A	0.90	0.50
B	0.86	0.70

Questions:

• Which model would you choose for this application?

Choose Model B because it achieves higher precision (0.70 vs. 0.50) while satisfying the recall requirement.

AP summarizes precision across the entire recall range, not just recall ≥ 0.8.

Model A may have better precision at lower recall levels, resulting in a higher overall AP.

This illustrates why the evaluation metric should align with the application’s operating requirements.

Both results come from validation data; final performance should be evaluated on an independent test set.

Compare several metrics with cross-validation

cv = StratifiedKFold(n_splits=3, shuffle=True, random_state=42)
scoring = ["accuracy", "precision", "recall", "f1", "average_precision", "roc_auc"]
cv_results = cross_validate(pipe, X_train, y_train, cv=cv, scoring=scoring)
pd.Series({metric: cv_results[f"test_{metric}"].mean()
           for metric in scoring}, name="Mean CV score").round(3)

accuracy             0.999
precision            0.865
recall               0.610
f1                   0.714
average_precision    0.743
roc_auc              0.962
Name: Mean CV score, dtype: float64

• Accuracy, precision, recall, F1 use class predictions.
• AP and ROC AUC use scores.
• Here, test_ means held-out CV folds, not the reserved test set.

Select a pipeline, then a threshold

1. Training/CV: compare candidate pipelines with an explicit objective, e.g. GridSearchCV(..., scoring="average_precision").
2. Validation: choose the threshold for the operational goal, e.g. maximize precision subject to recall ≥ 0.8.
3. Test: evaluate the frozen fitted pipeline and threshold once.

The highest CV AP need not yield the best precision at the required recall.

This two-stage strategy is convenient, not a guarantee of the best constrained solution. Specify the requirement before examining results. Validation scores used for selection are optimistic estimates of the selected system.

Threshold-selection implementation:

from sklearn.metrics import precision_recall_curve
precision, recall, thresholds = precision_recall_curve(y_valid, valid_scores)
candidates = pd.DataFrame({"Threshold": thresholds,
    "Precision": precision[:-1], "Recall": recall[:-1]})
qualifying = candidates[candidates["Recall"] >= 0.8]
chosen = qualifying.sort_values(
    ["Precision", "Threshold"], ascending=[False, False]).iloc[0]
chosen.to_frame("Chosen validation operating point").round(3)

	Chosen validation operating point
Threshold	0.092
Precision	0.764
Recall	0.816

This demonstration keeps our fitted logistic-regression pipeline fixed. The validation score helped select the threshold; it is not a final estimate.

iClicker Exercise 9.5: find the leak

A student selects a pipeline using CV, tries 100 thresholds on the test set, and reports the highest test F1.

“The test set was never passed to fit, so the evaluation is independent.”

Is this correct? How would you repair the workflow?

No. Threshold selection uses test labels to choose a decision rule. Select thresholds on development data and freeze the fitted pipeline and threshold before independent evaluation. Once test results guide selection, fresh held-out data is needed to evaluate the revised system.

Final evaluation: freeze both choices

chosen_threshold = chosen["Threshold"]
test_scores = pipe.predict_proba(X_test)[:, 1]
pd.DataFrame([threshold_metrics(y_test, test_scores, chosen_threshold)]).round(3)

	Threshold	Caught (TP)	Missed (FN)	False alarms (FP)	Precision	Recall	F1
0	0.092	119	29	36	0.768	0.804	0.785

• Report counts as well as scores to show the scale of the mistakes.
• Do not adjust the model or threshold after seeing these results.
• Refitting can change scores; the chosen threshold may no longer transfer.

We keep the fitted pipeline unchanged and do not refit on validation data. In a broader search, the pipeline would first be selected within training CV. Repeatedly changing objectives after examining validation plots adds selection bias.

Summary questions

1. Why can accuracy be misleading on imbalanced data? What do FP and FN reveal that accuracy hides?
2. When would you prioritize precision or recall, and when is F1 useful?
3. How do AP and ROC AUC differ from metrics at one threshold? Where should we select the pipeline and threshold before final evaluation?

• A majority-class classifier can have high accuracy while missing the rare positive class. A confusion matrix separates false alarms (FP) from missed positives (FN).
• Prioritize precision when false alarms are costly, recall when missed positives are costly, and F1 when balancing precision and recall at a chosen threshold.
• AP and ROC AUC summarize rankings; precision, recall, and F1 describe labels at a chosen threshold. Select the pipeline in training CV and the threshold on validation data; evaluate the frozen system on an untouched test set.
