CPSC 330 Lecture 10: Regression Metrics

Varada Kolhatkar

Focus on the breath!

Announcements

• Midterm next week. Important information about midterm 1
  • https://edstem.org/us/courses/104703/discussion/8335467
  • Good news for you: You’ll have access to our course notes and sklearn, pandas, and numpy documentation in the midterm!
• HW4 was due Monday, Oct 12 at 11:59 pm.
• HW5 is now available and due Oct 26 at 11:59 pm. This project brings together what you’ve learned. Start early!

Which metric fits best?

Scenario	Data Imbalance	Main Concern	Best Metric(s) / Curve
Email Spam Detection	10% spam	Avoid false positives
Disease Screening	1 in 10,000	Avoid false negatives
Credit Card Fraud	0.1% fraud	Focus on rare positive class
Sentiment Analysis	50/50 balanced	Overall correctness

Possible answers: spam precision if flagged mail is discarded; disease recall; fraud PR curve/AP for ranking and precision/recall at the operating threshold; sentiment accuracy if error costs are similar. These are starting choices. Ask students to name the action taken and the consequences of FP and FN before choosing a metric.

PR curve and AP: Key takeaways

• PR curve: x = recall; y = precision. Each threshold gives a precision–recall pair.
• Precision: Of the examples flagged positive, what fraction are positive?
• Recall: Of all actual positives, what fraction did we find?
• AP: A single summary of precision across recall levels; higher is better.

The curve helps choose an operating point; AP summarizes the ranking.

Use predicted probabilities or decision scores to construct the curve, rather than thresholded class labels. Lowering the threshold includes more examples: recall cannot decrease, but precision need not move monotonically. Prefer high precision at the recall you need. AP weights precision by increases in recall: sum (R_n − R_{n−1})P_n. sklearn AP is not the trapezoidal area under a linearly interpolated PR curve. A horizontal no-skill precision reference is the positive-class fraction; AP depends on prevalence, so compare on the same representative evaluation set. AP does not choose a threshold and does not measure probability calibration. Source: https://scikit-learn.org/stable/modules/generated/sklearn.metrics.average_precision_score.html

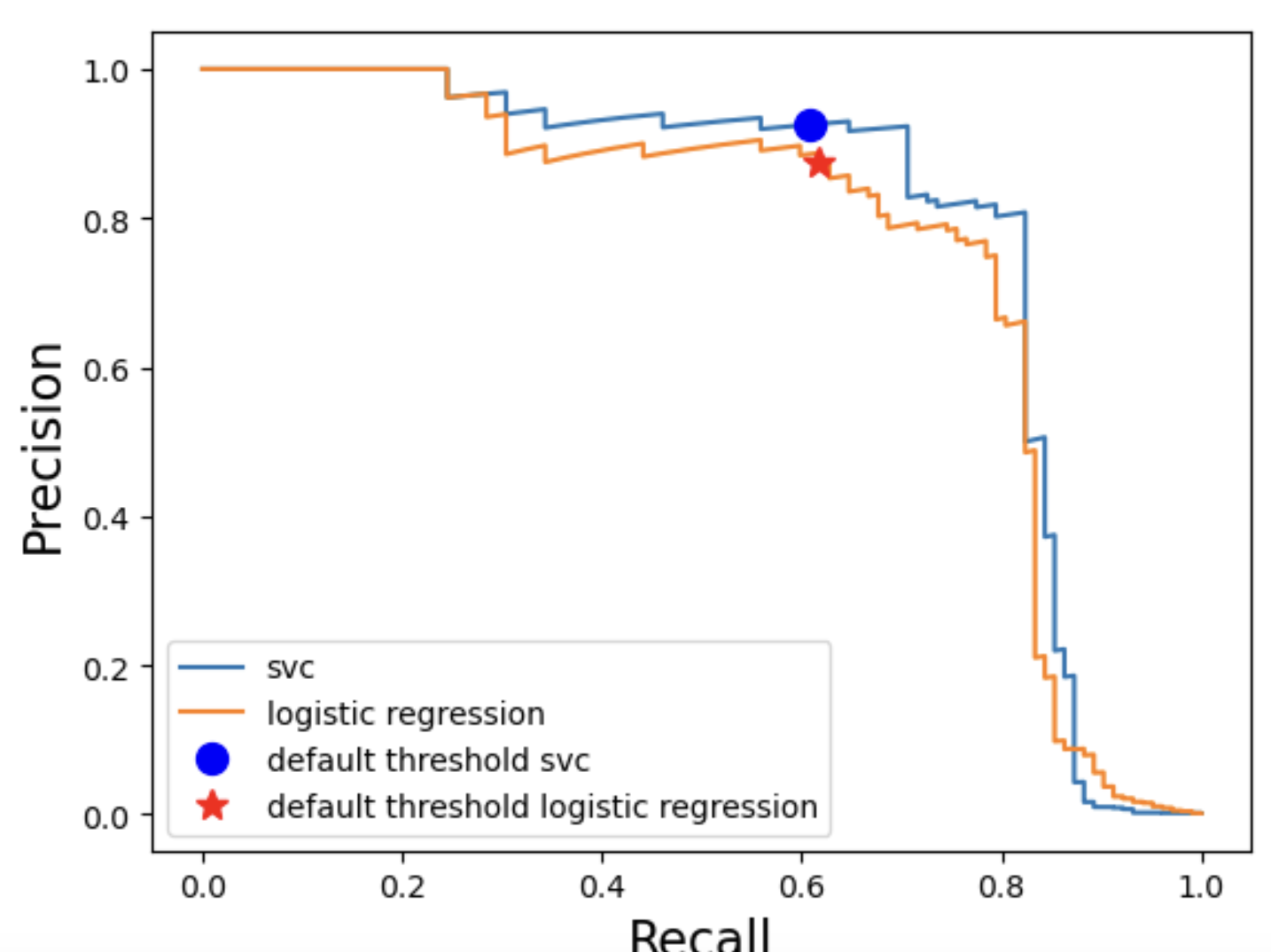

PR curves: Which model would you choose?

• What’s the difference between the average precision (AP) score and F1-score?
• Which model would you pick if high recall is essential?

F1 evaluates binary decisions at a chosen threshold; AP summarizes the precision–recall ranking across thresholds. Ask which recall region matters before choosing a curve. Crossing curves do not imply a universally best model.

ROC curve and ROC AUC: Key takeaways

• ROC curve: x = false-positive rate; y = true-positive rate (recall).
• TPR: \(TP/(TP+FN)\), the fraction of positives caught.
• FPR: \(FP/(FP+TN)\), the fraction of negatives incorrectly flagged.
• ROC AUC: Area under the ROC curve; higher is better.

FPR uses all actual negatives; precision uses all predicted positives.

Each threshold gives one (FPR, TPR) pair. Lowering the threshold cannot decrease either rate. Both ROC AUC and AP evaluate ranking across thresholds; neither determines the deployment threshold or establishes calibrated probabilities. Select an operating point using validation data and task constraints, then evaluate independently. Do not equate a small FPR with a small number of false alarms when negatives are numerous. Source: https://scikit-learn.org/stable/modules/generated/sklearn.metrics.roc_auc_score.html

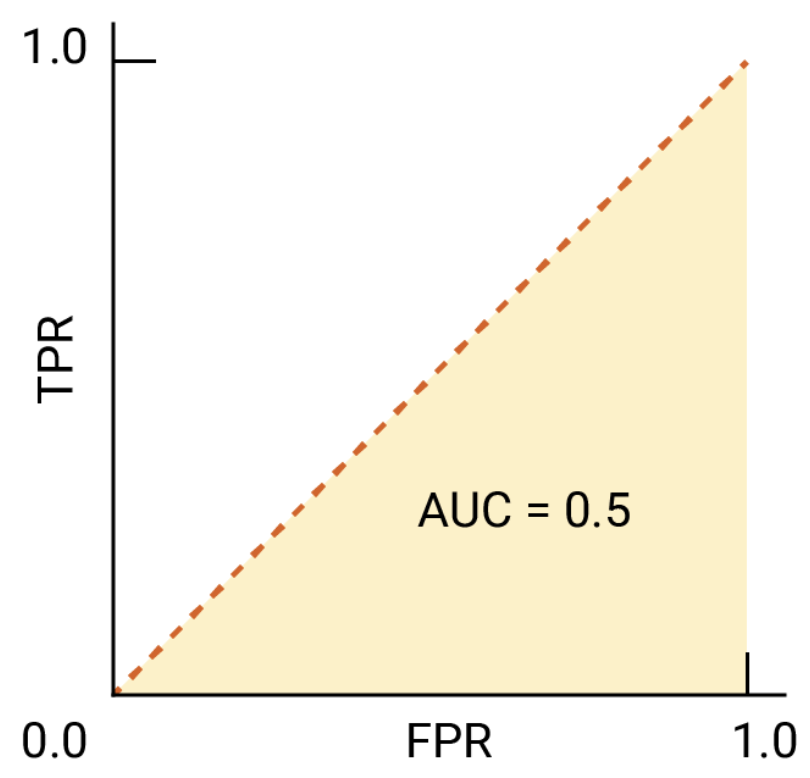

ROC AUC: Baseline and interpretation

• AUC = 1: Perfect separation in the evaluated sample.
• AUC = 0.5: Baseline ranking reference.
• AUC < 0.5: Ranking worse than that reference.

AUC is the probability that a randomly chosen positive scores above a randomly chosen negative.

The diagonal is the chance-ranking reference, not the curve of an always-negative classifier at a fixed threshold. A constant score gives AUC 0.5 through ties. A finite random ranking need not give exactly 0.5. AUC 0.9 does not mean 90% accuracy. AUC below 0.5 may suggest reversed score orientation; check the positive label and score definition rather than treating it as a deployment rule. Image source: https://developers.google.com/machine-learning/crash-course/classification/roc-and-auc

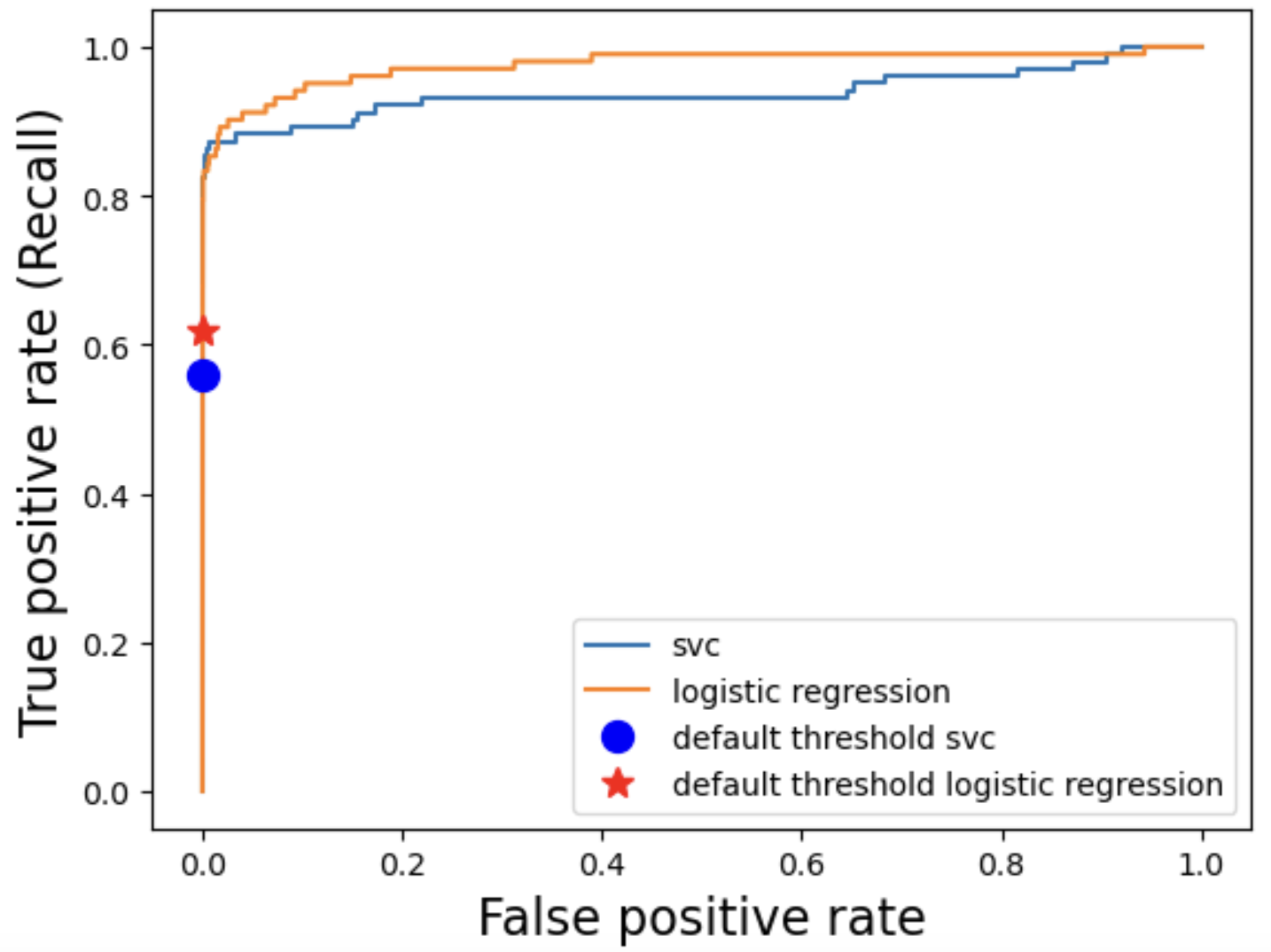

ROC curves: Which model would you choose?

• Which model would you pick if very few false alarms are acceptable?
• Is the model with the largest overall AUC necessarily best there?

Ask students to compare the curves in the operating region that matters. AUC summarizes the whole curve and can hide differences at very low false-positive rates.

Why check precision when positives are rare?

Suppose there are 100 positives and 9,900 negatives. At one threshold, TPR = 80% and FPR = 1%.

• How many true positives and false positives do we get?
• What fraction of alerts are correct?

TP = 80; FP = 99. Precision = 80/(80+99) ≈ 44.7%. Despite the small FPR, there are more false alerts than true alerts. ROC remains a valid ranking view; PR directly shows alert quality and coverage. These are values at one threshold, not enough information to infer either AUC or AP.

Summary: Choosing the right metric

Metric / plot	Question it answers
Precision, recall, F1	How good are the decisions at a chosen threshold?
PR curve	What precision can we get at the recall we need?
AP	How well is precision maintained across recall levels?
ROC curve	What fraction of negatives do we flag at the recall we need?
ROC AUC	How well does the model rank positives above negatives overall?

Choose a threshold from the task’s costs and constraints. When positives are rare, inspect precision even if ROC AUC is high.

Both curves vary thresholds; both scores summarize ranking. F1 balances precision and recall at a particular threshold, whereas AP and ROC AUC summarize performance across thresholds. None alone specifies error costs, review capacity, or the appropriate deployment threshold. Revisit the opening scenarios: the action and consequences determine what matters.

Dealing with class imbalance

• Under sampling
• Oversampling
• class_weight="balanced" (preferred method for this course)
• SMOTE

Revision: Changing class weights

class_weight="balanced" gives rarer classes more weight during fitting.

For fraud detection, what changes might you expect?

• False negatives and recall?
• False positives and precision?
• Does the validation set become balanced?

Often fewer FN and higher recall, with more FP and potentially lower precision. These are empirical effects, not guarantees. Weighting changes fitting; it does not resample or balance the validation set. Evaluate on representative held-out data. Other imbalance methods must also be applied only within training folds.

Today’s big questions

1. How do MAE, RMSE, R², and MAPE describe different aspects of prediction error?
2. How do we choose a metric and use it in cross-validation and model selection?
3. What changes when we transform the target?

Notebook demo: Housing and preprocessing

Predict SalePrice from information available for a new house.

• Inspect feature meanings and missing values.
• Distinguish an absent amenity from unknown information.
• Build and inspect a complete preprocessing pipeline.

Chapter 10 notebook

Open the local updated chapter notebook. Demo cells 5–31 selectively: split; feature summary; absent amenities; representative encodings; transformed feature names. Skip reading the long feature lists aloud. Ask why MSSubClass is categorical despite its numeric dtype. All learned preprocessing must be fitted within each CV training fold; the full-training transformed table is for inspection.

iClicker Exercise 10.1

Select all statements that are TRUE.

• 1. SalePrice / GrLivArea is a useful input when predicting a new house’s SalePrice.
• 2. Larger alpha in ridge means stronger regularization, opposite to larger C in logistic regression.
• 3. Preprocessing must be fitted separately within each cross-validation training fold.

Answers: B and C. A leaks the target because the new house’s sale price is unavailable. Fixed row-wise rules based on feature meanings can be applied before CV; learned medians, scaling, and encodings belong inside the pipeline.

Ridge regression and alpha

• Ridge fits a linear model with a penalty on squared coefficients.
• Larger alpha: stronger regularization; the coefficient vector shrinks overall.
• Smaller alpha: weaker regularization; more freedom to fit the training data.
• Too much regularization can underfit; too little can overfit.

Scaling matters because the penalty depends on coefficient magnitudes and therefore feature units. An individual coefficient need not shrink monotonically as alpha increases, especially with correlated features.

Notebook demo: Baseline and ridge tuning

• Compare DummyRegressor and ridge on the same CV folds.
• Search ridge__alpha around the complete pipeline.
• Inspect training/validation curves and selected coefficients.

Predict: What happens when alpha becomes very large?

Demo cells 34–40. Pause at the tuning curve before revealing best_params_. Select by validation performance, keeping the test set aside. DummyRegressor predicts the training mean; its held-out R² can be below zero. Coefficients are model associations, not causal effects.

Mean absolute error (MAE)

\[\operatorname{MAE}=\frac{1}{n}\sum_{i=1}^{n}|y_i-\hat y_i|\]

• Average absolute error, in the target’s units.
• Each additional dollar of absolute error contributes equally.
• Smaller is better; perfect predictions have MAE = 0.

MAE = $20,000 means an average absolute error of $20,000 on the evaluated houses.

Taking absolute values prevents opposite errors from cancelling. MAE does not imply every prediction, or most predictions, is within $20,000. Inspect the error distribution as well.

MSE and RMSE

\[\operatorname{MSE}=\frac{1}{n}\sum_{i=1}^{n}(y_i-\hat y_i)^2, \qquad \operatorname{RMSE}=\sqrt{\operatorname{MSE}}\]

• Squaring gives large errors greater influence.
• MSE has squared target units; RMSE has target units.
• Both have a best value of zero; smaller is better.

A $20,000 error contributes four times as much to MSE imas a $10,000 error.

MSE and RMSE rank models identically on one fixed evaluation set. Mean fold RMSE is not generally the square root of mean fold MSE; use the desired CV scorer directly.

Your turn: MAE versus RMSE

Absolute errors on three houses:

Model	House 1	House 2	House 3
A	$0	$0	$30,000
B	$10,000	$10,000	$10,000

1. Which model has lower MAE?
2. Which model has lower RMSE?

Both MAEs are $10,000. RMSE A ≈ $17,321; RMSE B = $10,000. RMSE penalizes the concentrated large mistake more. Neither automatically represents the application’s actual costs. Run notebook cell 49 after students predict.

Notebook demo: Error magnitudes and direction

• Calculate MAE, MSE, and RMSE for the same predictions.
• Inspect observed versus predicted prices.
• Count overpredictions and underpredictions.

Can a low average error hide a pattern of costly mistakes?

Demo cells 43–54. These training metrics illustrate calculations, not generalization. Above the identity line means overprediction; below means underprediction. Magnitude metrics discard direction; percentages of over/underprediction discard magnitude. Use CV or held-out errors for evaluating new-house performance.

Coefficient of determination: \(R^2\)

\[R^2=1-\frac{\sum_i(y_i-\hat y_i)^2}{\sum_i(y_i-\bar y)^2}\]

The reference predicts the mean of the evaluation targets.

• 1: perfect predictions.
• 0: same squared error as that reference.
• Negative: worse than that reference.

For ridge, .score(X, y) returns \(R^2\) by default.

R² = 0.8 means model squared error is 20% of the reference error. It does not mean 80% of predictions are correct. The evaluation mean differs from the training mean used by a fitted DummyRegressor. R² depends on target variation, so it is not a universal comparison across datasets. Formula assumes nonconstant evaluation targets; sklearn handles constant targets specially. Keep r2_score(y_true, y_pred) argument order.

Mean absolute percentage error (MAPE)

\[\operatorname{MAPE}=\frac{1}{n}\sum_i\frac{|y_i-\hat y_i|}{|y_i|}\]

A $30,000 error is 5% of $600,000, but 50% of $60,000.

• Use when proportional errors matter and targets are safely away from zero.
• Zero or near-zero targets can produce enormous values.
• sklearn returns a proportion: 0.093 means 9.3%.

Demo cells 56–58. A percentage needs a meaningful zero; Celsius temperatures are a counterexample. The same dollar error has more influence for cheaper houses. sklearn uses a small denominator at zero, which avoids division by zero but does not solve interpretability.

iClicker Exercise 10.2

Select all statements that are TRUE.

• 1. Precision and recall apply directly to continuous regression predictions.
• 2. Ridge’s default .score() agrees with r2_score(y_true, y_pred).
• 3. RMSE is always nonnegative.
• 4. MSE alone does not show whether a model overpredicts or underpredicts.
• 5. Regression searches can record multiple scoring metrics.

Answers: B, C, D, E. A is false for continuous regression outputs; precision and recall require a defined classification decision. Negative error scorers do not mean that the underlying errors are negative.

Which metric fits the scenario?

Scenario	What matters most?	Primary metric?
House prices, $60K–$800K	Error relative to each house’s price
Exam scores, 0–100	Each additional point of absolute error counts equally
Energy consumption	Large errors deserve disproportionate emphasis
Insurance claims	Squared error relative to predicting the evaluation mean

What limitation would you check for each choice?

Possible answers: MAPE, checking near-zero prices and meaning of ratios; MAE, inspecting large errors; RMSE, inspecting extreme errors and valid records; R², considering target variation and also reporting MAE/RMSE in monetary units. These metrics all treat equal-magnitude over/underprediction equally; asymmetric consequences need a cost-based criterion.

Regression metrics summary

Metric	Interpretation	Units	Best
MAE	Average absolute error	Target units	0
MSE	Average squared error	Target units squared	0
RMSE	Squared-error emphasis in familiar units	Target units	0
\(R^2\)	Squared error relative to evaluation mean	Unitless	1
MAPE	Average absolute relative error	Proportion	0

Choose a primary metric before comparing models; inspect errors as well as scores.

Error functions versus sklearn scorers

Metric functions return nonnegative errors: smaller is better.

sklearn scorers use higher is better, so error scores are negated.

scoring = {
    "MAE": "neg_mean_absolute_error",
    "RMSE": "neg_root_mean_squared_error",
    "R2": "r2",
    "MAPE": "neg_mean_absolute_percentage_error",
}

An MAE score of −20,000 is better than −30,000.

Negate error scores again to report positive errors. Do not negate R²: a negative R² is a real possible value. make_scorer(…, greater_is_better=False) provides the same sign convention for a custom error function; keep the implementation in the notebook.

Notebook demo: Scoring and selection

• Record multiple metrics with cross_validate.
• Search with GridSearchCV(..., scoring=scoring, refit="MAPE").
• Convert negative error scores to positive errors for reporting.

Does selecting with MAPE make ridge fit by minimizing MAPE?

Demo cells 60–64; skip the final test evaluation until choices are settled. Answer: no. Each ridge candidate still fits squared error plus regularization; MAPE selects among candidates. Fold standard deviations describe variation, not confidence intervals. Scores have different units and their numerical sizes cannot be compared directly.

Transforming the target

A log transformation compresses large target values more than small ones.

ttr = TransformedTargetRegressor(
    Ridge(alpha=best_alpha),
    func=np.log1p,
    inverse_func=np.expm1,
)
ttr_pipe = make_pipeline(preprocessor, ttr)

• .fit() transforms the training targets.
• .predict() returns predictions on the original scale.

ColumnTransformer transforms X; TransformedTargetRegressor handles y. log1p needs targets greater than −1; positive house prices meet that requirement. A less skewed histogram alone does not establish improved predictions. The wrapped ridge fits squared error plus regularization on the transformed scale; it does not directly minimize MAPE.

Notebook demo: Does transforming the target help?

• Inspect price distributions before and after a log transformation.
• Fit the transformed-target pipeline.
• Compare approaches with training-set CV, scored in dollars or relative errors.

Reserve the test set for evaluating the final selected workflow.

Demo cells 70–79. Replace the exploratory test comparison in cell 80 with cross_validate(ttr_pipe, X_train, y_train, cv=10, scoring=scoring), and compare with the untransformed workflow using the same folds. Tune alpha for each approach within the training data for a considered comparison. Do not compare training MAPE with test MAPE or choose a transformation by trying alternatives on the test set. Run one final test evaluation after selection.

Exit questions

1. When would you prefer MAE to RMSE?
2. What does a negative \(R^2\) tell you?
3. How does changing the scoring metric differ from log-transforming the target?

MAE when each added unit of absolute error contributes equally; RMSE when large errors deserve extra emphasis. Negative R² means worse squared error than predicting the evaluation-target mean. Scoring changes candidate evaluation/selection; target transformation changes the scale of fitting, with predictions inverse-transformed for evaluation.
